A replacement black ribbon can match the usual width and still leave an important compatibility question unanswered. Confirm its coated side separately from its chemistry and physical dimensions before authorising a substitution.

Approve the printer, supplies and template as a complete backup kit. A second machine is useful capacity only when the intended labeling job has relevant evidence on that actual combination.

Copper Fern dried-mushroom packaging with two generic printers and separate label and ribbon supplies

Approve the ribbon as a specified consumable

Begin with the current printer configuration and an approved supply reference. Do not infer ribbon compatibility from its black colour, a photograph of the roll or the fact that it fits a spindle. A replacement description needs the coating orientation as well as the material and physical format.

Two different winding questions
Two different winding questions. Editorial planning diagram; illustrative values are not customer observations or approval limits. Open at full size.

Ribbon wound with its coated side outside is a different supply description from ribbon coated inside. Neither term means that the finished label must be wound print-in or print-out. Those are two separate rolls and two separate drawings. Keep the label unwind instruction out of the ribbon coating field.

Zebra's published ZT231 manual identifies outside-coated ribbon for that printer. This is a model-specific example, not a rule for every thermal-transfer machine. Consult the actual equipment instructions and supplier before purchasing or loading a substitute; this guide supplies no loading path or home-made identification test.

Substitution field Approved reference Proposed replacement
Printer scope Actual model and installed configuration Confirm the same applicable scope
Coated side Explicit inside/outside specification Obtain a written value, not a visual guess
Physical format Required width, length and core arrangement Compare every relevant dimension
Print combination Ribbon reference plus final label surface Identify chemistry and any changed surface
Evidence Identified approved output and required checks State what the proposed combination still needs

If a field is absent, keep the substitution unresolved rather than copy the usual product's value into it. A reseller's shared product family is not evidence that every variant has the same winding or core. Ask which exact item will be supplied and retain that item identity with the order.

Physical compatibility also does not establish durability. Once the supply specification is supported, the responsible printer owner must decide the relevant output evaluation on the actual finished label. Clear printing at the desk cannot establish the required handling life or barcode acceptance.

The practical alternatives are to obtain the confirmed approved reference, obtain a fully specified substitute for evaluation, or defer the affected job. Each has stock and scheduling consequences. Do not compensate for an unknown supply by copying heat settings from another model. Keep the eventual consumable approval connected to the backup-kit record below.

AI-generated packaging planning example. Copper Fern is a fictional brand; not a customer project, production test or usable retail artwork.

Record the kit, not only the printer model

Identify the exact printer configuration and the media-handling arrangement used for the job. Follow its instructions for compatible supplies and operating settings. Do not transfer a heat or speed number from another model simply because its output once looked similar.

Backup recordWhat to confirm
Printer and modeActual model/configuration and direct-thermal or transfer workflow
Label constructionFace/coating, adhesive, liner and media format
Ribbon, if requiredApproved reference and compatibility with that printer and media
TemplateFile revision, output size and actual populated fields
EvidenceIdentified output sample and appropriate package/quality checks
ActivationAuthorized operator, clearance process and unresolved limits

Zebra's media-type guidance distinguishes ribbon-based thermal-transfer media from direct-thermal media. It is a model-documentation reference, not permission to load an arbitrary supply into any printer.

Compare the output that matters to the package

Use the intended smallest relevant text and code layout, representative data and final construction. Agree what checks are necessary for the receiving workflow and required service conditions. A visible sample produced on the desk does not by itself establish long-term durability or formal barcode acceptance.

If a different ribbon or stock is proposed to make the backup work, identify the change and its evidence. Keep its inventory distinguishable from the primary route. Otherwise the supplies bought for an emergency can later be loaded on the normal machine without review.

Make the contingency usable

Record who can activate the backup and which job parameters must be checked first. Keep the current template available through the operation's controlled file system. A backup that depends on an old file stored on one laptop is not a fully defined process.

Review the kit when the printer, media, ribbon, template or required service changes. Ask the responsible reviewer what prior evidence remains relevant. Do not treat a successful old trial as permanent approval of all later supplies.

The later-overprint guide covers preprinted surfaces, while the date/lot handoff covers value ownership and barcode verification guide covers code evidence.

Short answer

Choose direct thermal for short-life, simple variable data; choose thermal transfer when the print must survive longer, resist handling or remain reliably scannable. The correct choice depends on service life, heat, light, moisture, abrasion and the label material.

The purchase price of the printer is rarely the whole decision. Direct thermal removes the ribbon from daily work. Thermal transfer adds a consumable, but buys a wider range of durable print outcomes. One saves steps. The other saves reprints.

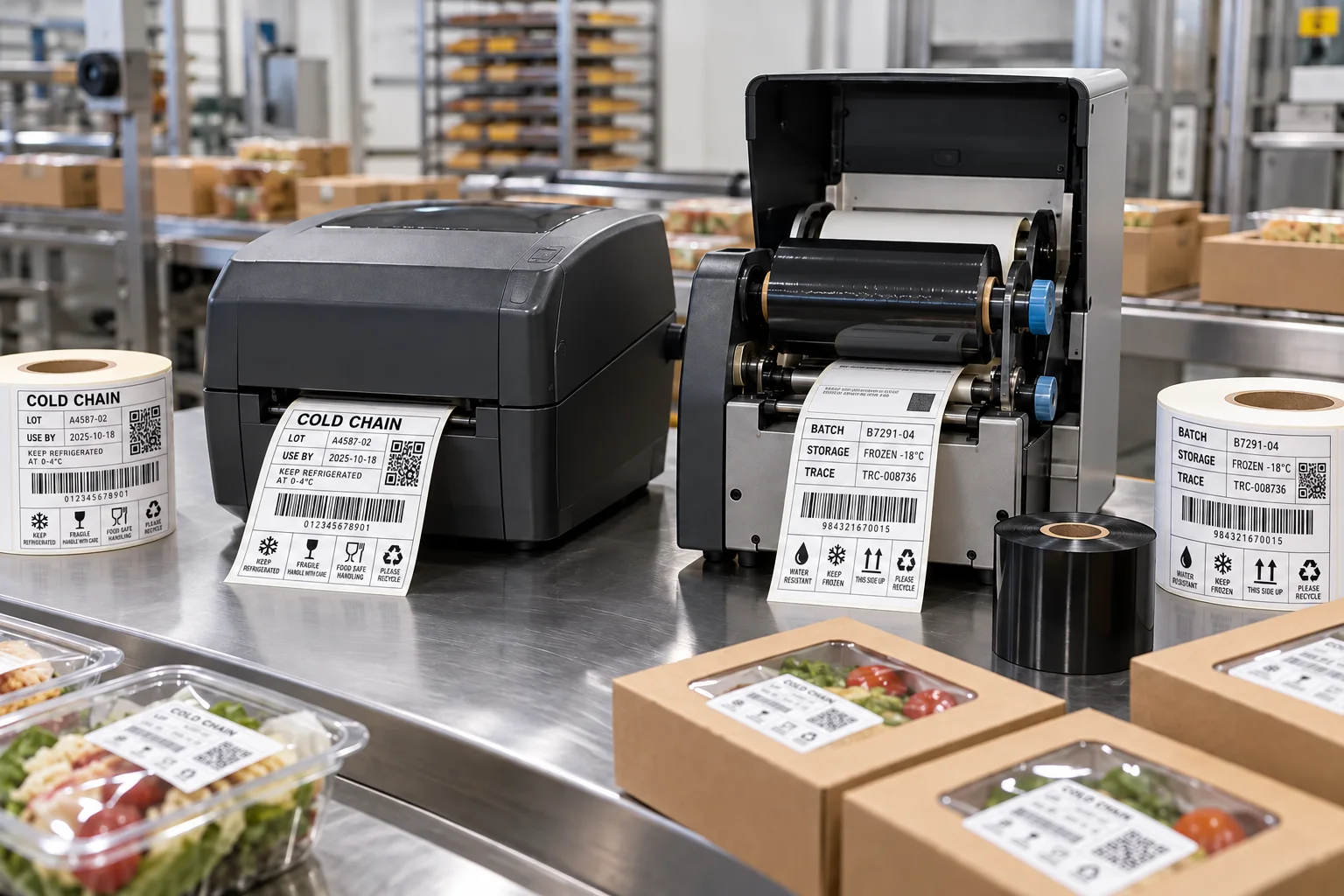

How the two methods create an image

FactorDirect thermalThermal transfer
Image sourceHeat-sensitive label coating darkensHeated printhead transfers ribbon material
RibbonNot requiredRequired
Typical strengthSimple operation and short-term codingDurability and broad material choice
Main riskHeat, light or abrasion can degrade the imageWrong ribbon and face-stock pairing reduces performance

The ribbon requirement and media type need to be confirmed from the actual printer and supplied construction. A surface-identification check does not establish the final service performance.

Two typical buyers, two correct answers

First composite scenario: a bakery prints same-day use-by labels for trays that leave the store within hours. The team wants fewer consumables and quick operator training. Direct thermal has a clean win. Paying for long-term image durability would solve a problem the package does not have.

Second scenario: a frozen-food co-packer prints lot codes and barcodes that must survive months of storage, carton friction and temperature changes. Thermal transfer is the more defensible route. The operator has to manage ribbon, but the buyer is not really purchasing ribbon-free convenience; they are purchasing readable traceability.

Print durability and label adhesion are separate

This distinction causes expensive confusion. Thermal transfer can produce a durable image on a film label, but that film still needs the correct adhesive for a cold, wet or difficult package. Direct thermal stock can print perfectly and still peel because it was applied to a damp tray.

  • Print method controls how the variable image is created.
  • Face material controls moisture, tear and surface behavior.
  • Adhesive controls the bond to the package.
  • Roll construction controls whether the media runs through the printer.

What to confirm before buying blank thermal rolls

SpecificationWhy it matters
Printer make and modelControls media width, sensing and roll limits
Direct thermal or thermal transfer modeDetermines media and ribbon requirement
Label size, gap and coreAffects feeding and detection
Ribbon type and widthMust match label face and durability target
Service life and environmentSeparates temporary coding from long-term identification

A practical proof test

Print the smallest barcode, lot code and date format you expect to use. Scan it immediately, after rubbing, after storage and after exposure to the expected temperature. Keep the approved printer settings and ribbon reference with the label specification so the next roll is not a new experiment.

For variable information planning, read Date Code and Lot Number Labels and Barcode and QR Code Labels. For machine-ready rolls, use the Label Roll Direction Guide.
