A target of 1,200 labels does not define a web length until the actual repeat layout is known. Reconcile the pieces, labels across and machine-direction pitch before asking how that proposal fits the equipment roll limits.

Keep machine limits, supplier targets and received quantities in separate columns. They answer different questions. A desired number of labels per roll must not quietly override a hard equipment limit, and an outside diameter does not by itself verify a count.

Field Mill oat-cracker label rolls with visible cardboard cores and a matching designed carton

Translate the quantity through the actual repeat drawing

Ask for the machine-direction pitch: the distance from one equivalent repeat position to the next. Keep it distinct from label height, cross-web width and the visible gap alone. Identify how many finished labels the repeat contains. The calculation describes the supplied layout, not an instruction to change it.

Same piece count, different web length
Same piece count, different web length. Editorial planning diagram; illustrative values are not customer observations or approval limits. Open at full size.

For complete identical repeats, printed repeat length equals finished label count divided by labels per repeat, multiplied by repeat pitch. Use consistent units. Where mixed repeats, removed positions or partial rows exist, obtain the actual layout/count record instead of forcing that simple formula onto the job.

An arithmetic example contains 1,200 labels, one label per repeat and a 40 mm pitch. Its repeated label-bearing web is 48,000 mm, or 48 m. With two labels per repeat at that same pitch, 1,200 pieces occupy 600 repeats and 24 m. These are fictional layouts, not evidence that a particular applicator accepts a two-across roll.

Planning input Value or record required Keep separate
Finished quantity Actual usable pieces by artwork Printed positions that will be excluded
Repeat layout Labels per complete repeat and drawing ID Number of separate delivered rolls
Machine-direction pitch Equivalent-position distance with units Cross-web label width and gap alone
Repeated web Complete repeats multiplied by pitch Bare leader, trailer and other non-product web
Finished roll proposal Supplier's actual winding arrangement Maximum permitted diameter and mass

Add only the leader, trailer and other allowances actually proposed and agreed. Do not invent a universal extra length or count an unprinted carrier as finished labels. If the arithmetic leaves a fractional repeat, ask how the real layout treats that remainder; rounding up does not automatically create usable ordered labels.

Web length is still not a verified outside diameter. The full construction, core and winding arrangement matter to roll build. Give the converter the equipment limits and ask for a supported finished-roll proposal rather than calculate an exact diameter from these two examples.

This worksheet can reveal a unit or layout mismatch before the order reaches receiving. It does not prove the delivered count. Keep the packing record and any actual count evidence separate, then use the acceptance sheet below to reconcile the physical roll with its equipment requirements.

AI-generated packaging example. The brand artwork is fictional and the scene is illustrative, not a customer project or measured test.

Use a three-column roll acceptance sheet

Attach the relevant equipment reference and identify the installed unwind arrangement. The following is an editorial reconciliation tool, not permission to alter a machine or exceed its rated limits.

ItemEquipment requirementSupplier proposal and received-roll record
Core boreConfirm ID, units and accepted configurationIdentify the proposed core and measured/verified fit evidence
Finished envelopeMaximum permitted diameter and relevant clearanceConfirm the maximum finished roll, not only a nominal target
Web pathAccepted liner width and relevant guiding/sensing needsRecord the supplied web construction and any exception
LoadingEquipment and workplace requirements for handling the rollIdentify the proposed roll mass and loading arrangement where relevant
WindingAgreed leading edge, printed side and formatTie the drawing and first-off sample to the actual order
InventoryRequired quantity per SKUReconcile total labels, roll count and target quantity per roll separately

Ask the converter which quantity or roll dimension is a target and which is a confirmed limit. If the target quantity does not fit the allowed envelope for the selected construction, have the parties revise the roll plan. Do not ask an operator to discover the mismatch during the launch run.

Zebra's ZD200 user guide provides one example of a manufacturer publishing media core, outside-diameter and other requirements together. It is a printer-specific reference, not a general specification for beverage applicators. Your own equipment reference and installed options remain the relevant starting point.

Reconcile inventory without inventing a shortage

Write down how the supplier identifies quantities and tolerances. A carton with a stated roll count is not necessarily a promise that every roll contains exactly the same number of labels. Conversely, saying that roll quantities vary does not answer whether the confirmed total order was supplied.

Keep the original packing record and identify the affected SKU and roll when a discrepancy is suspected. Compare the agreed quantity basis, the delivery record and any reliable count evidence before making a conclusion. Do not derive a precise label count from a photograph of the outside diameter.

If a roll is damaged, telescoped or otherwise unsuitable for the line, record that condition separately from its dimensional specification. A receiving record should show what was observed and what remains to be checked; it should not assign an unexplained failure to core size alone.

Close the interface before the production shipment

Where a trial roll is needed, have the equipment owner define and supervise the relevant check under the equipment's instructions. Identify the sample construction and format so that its result is not applied to a different production roll. No machinery trial has been performed for this guide.

Use the roll-direction guide for the separate orientation drawing and the roll versus sheet comparison when the production format itself is unsettled. Keep the chosen format and the dimensional record linked in the order.

Short answer

Send the converter five roll facts: core inside diameter, maximum outside diameter, unwind direction, leading edge and target labels per roll. Add the machine model and roll-weight limit whenever possible. “Standard roll” is not a specification.

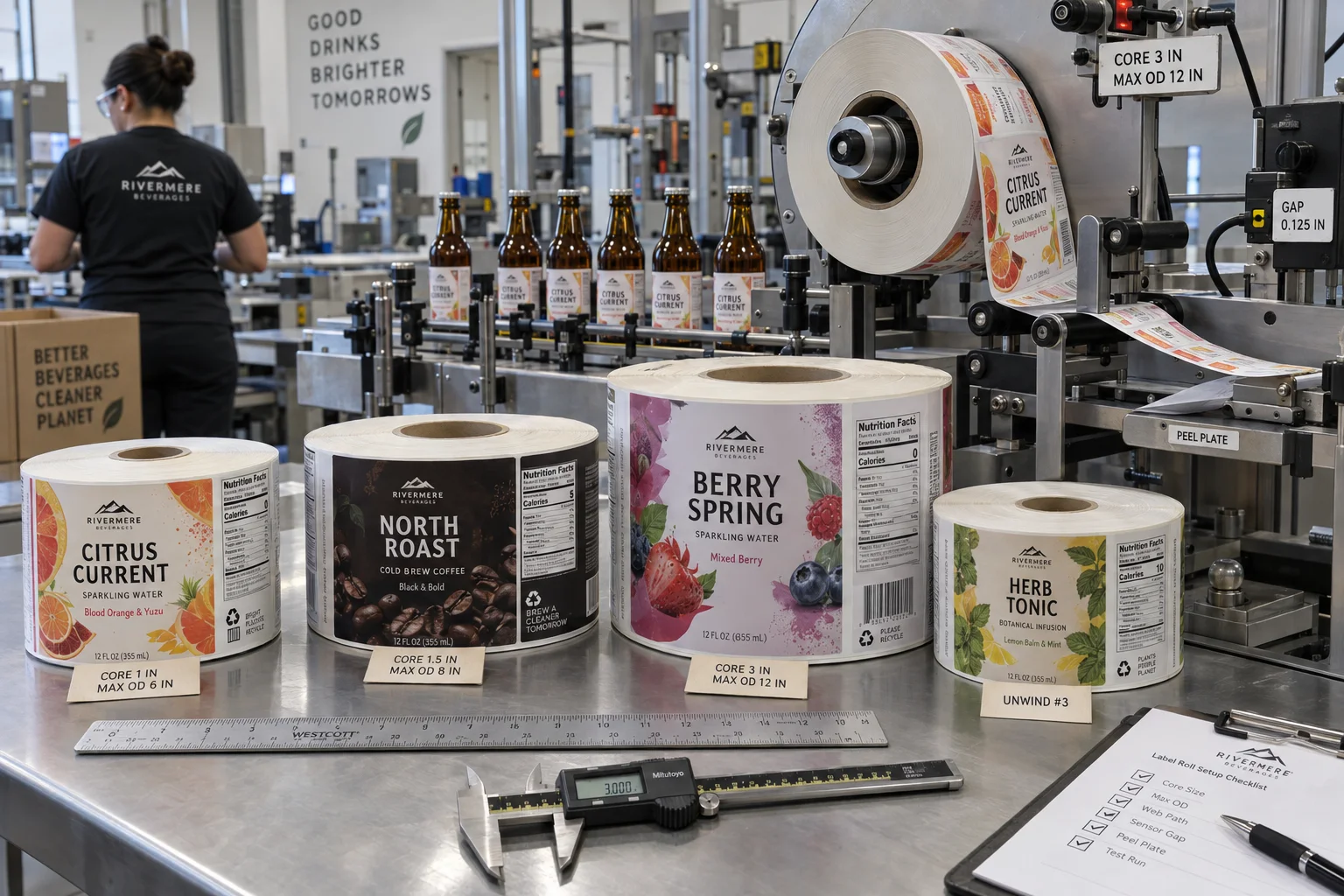

A label order can look correct while its core does not fit the intended equipment. Treat that interface as a purchasing requirement.

Core ID and roll OD solve different problems

SpecificationControlsIf wrong
Core inside diameterFit on the unwind mandrelRoll cannot mount or slips
Maximum outside diameterClearance, weight and run lengthRoll hits guards or overloads the unwind
Web widthGuide and sensor pathTracking becomes unstable
Unwind directionWhich side and edge present firstCopy is upside down or adhesive faces the wrong way
Labels per rollChangeover frequency and inventory countUnexpected stops or excess roll weight

A composite co-packer rejection

This is a composite planning example. A sauce brand moves filling to a co-packer. The label dimensions and bottle stay unchanged, so purchasing reorders the previous rolls. The old hand station used a small core; the new automatic applicator requires a larger mandrel and limits finished roll diameter.

The brand says, reasonably, “It is the same label.” The co-packer says, also reasonably, “It is the wrong roll.” Both are correct. The printed unit is the same; the production component is not.

A practical response is to issue a new roll specification linked to the co-packer and line number, even when the visible artwork remains unchanged.

Why labels per roll is an estimate

The number depends on label pitch, liner caliper, face material, adhesive, core size and maximum OD. Two rolls with the same outside diameter can carry different quantities. Splices and winding tension add variation. Ask for a target quantity with a practical tolerance, then let the maximum OD be the hard machine limit.

For production planning, divide the run by the verified labels-per-roll figure and add expected setup waste. For purchasing, count finished rolls and total labels separately so a small winding variation does not look like a shortage.

Large rolls are efficient until they are not

A larger OD can reduce changeovers, but it adds weight and inertia. Operators may struggle to lift it safely, and a compact tabletop applicator may not control it well. A smaller roll can be the better choice for short seasonal SKUs, manual loading or frequent artwork changes.

Measure the line, not the sample roll alone

  • Read the applicator manual and photograph the unwind station.
  • Measure the mandrel and available guard clearance.
  • Record maximum roll weight and whether the roll is power-unwound.
  • Confirm label-out or label-in winding.
  • Draw the leading edge and copy orientation on the approval.
  • Include gaps, sensor marks and any clear-label sensing requirement.
  • Test one production roll before releasing the full order.

What to put on the purchase order

  • Core ID with units and allowed tolerance.
  • Maximum finished roll OD, not a preferred average.
  • Unwind diagram and leading-edge orientation.
  • Target labels per roll and overrun/underrun tolerance.
  • Machine model, web direction and application speed.
  • Maximum roll weight and pallet orientation.
  • SKU and artwork revision on every carton.

Avery's WePrint core information describes that supplier's fixed roll offering. It does not establish a universal core or outside-diameter requirement. Use your own equipment reference, and the Label Roll Direction Guide for the separate orientation drawing.

Resolve the specific label handoff

Include required finished quantity, labels per web repeat, machine-direction pitch, leader/trailer proposal and equipment roll limits.

Prepare the label specification inquiry. The contact page opens an email draft for review; send files through the listed email or WhatsApp route. Actual supply scope, samples, pricing and timing require project confirmation.
